مقدمة
In pharmaceutical, IVD, laboratory, cosmetic, and small-dose liquid production, accurate dispensing is often more difficult than it looks. When liquids need to be filled into 96-well deep-well plates, microplates, PCR plates, assay plates, or other multi-well containers, manual operation can quickly become slow, inconsistent, and hard to control.
That is where a Microplate Dispenser becomes useful. Instead of filling one cavity or container at a time, it is designed to dispense liquid in a controlled X-Y movement pattern, helping users complete multi-position filling more efficiently and more consistently.
For laboratories and manufacturers, this is not only about speed. It is also about repeatability, clean operation, material compatibility, and lower waste. A good Microplate Dispenser can help improve dispensing accuracy while keeping the process easier to manage.
زويفيل provides different Microplate Dispenser solutions based on مضخة السيراميك and peristaltic pump technology. In this guide, we will explain what a Microplate Dispenser is, where it is used, the main pump types, how different pump heads compare, and how to choose the right configuration for your application.
Product Overview
What Is a Microplate Dispenser?
A Microplate Dispenser is a precision dispensing machine designed to fill liquids into multiple positions arranged in rows and columns. During operation, one or more dispensing heads move according to an X-Y axis pattern, allowing the machine to fill plates or small containers in a two-dimensional matrix layout.
It is commonly used in industries that require high filling accuracy and clean dispensing, such as pharmaceuticals, daily chemicals, biopharmaceuticals, IVD, laboratories, and research institutions.
Compared with manual pipetting or simple filling equipment, a Microplate Dispenser can improve production efficiency and help keep dispensing volume more consistent. This is especially important when working with expensive reagents, small-dose liquids, or products that require repeatable test conditions.
In simple terms, this machine helps users fill many small positions accurately, cleanly, and efficiently.
Main Applications
A Microplate Dispenser can be used in several industries where small-volume and high-precision dispensing are required.
- In the pharmaceutical industry, it can be used for vials, ampoules, reagent tubes, injection solutions, oral liquids, and other high-cleanliness liquid filling applications. These products often require accurate volume control and stable dispensing performance.
- In the cosmetic industry, it is suitable for serums, toners, lotions, perfumes, and other liquid or semi-fluid products that need precise small-dose filling. For high-value cosmetic products, reducing material waste is also important.
- In the food and beverage industry, the machine can be used for nutritional liquids, functional drinks, edible essential oils, seasoning liquids, and other small-dose filling needs. It is especially useful when the product requires clean and repeatable filling.
- For chemical and research applications, a Microplate Dispenser can handle reagents, corrosive liquids, fine chemical materials, and laboratory consumables. The final choice of pump depends on the material properties, required accuracy, and cleaning method.
Key Advantages of a Microplate Dispenser
Multi-Pump Matrix Design for Higher Efficiency
One major advantage of a Microplate Dispenser is its multi-pump or multi-head matrix design. Several pumps can be arranged in parallel to support synchronized filling, allowing multiple positions to be filled at the same time.
This design can greatly improve working efficiency compared with single-head manual filling. For users who need repeated dispensing into plates or multi-well containers, the time savings can be significant.
The X-Y movement design also helps the machine adapt to different plate formats and filling positions. This makes it suitable for both small-batch research work and larger-scale continuous operation.
Precise Metering and Stable Consistency
Accuracy is one of the biggest reasons customers choose a Microplate Dispenser. When working with microplates, reagent plates, or small-volume containers, even a small error can affect test results, product quality, or material cost.
Ceramic pumps offer high hardness and low wear, helping maintain stable dispensing performance over time. Depending on the configuration, XUEFILL ceramic pump systems can reach high dispensing accuracy and support stable repeatability.
For expensive reagents, pharmaceutical liquids, cosmetic active ingredients, or laboratory samples, this consistency helps reduce waste and improve process control.
Corrosion Resistance and Clean Operation
Many liquids used in laboratories, pharmaceuticals, cosmetics, and chemical applications may be sensitive, corrosive, or difficult to handle. That is why pump material and cleanliness are important.
Ceramic pump bodies can resist acids, alkalis, high temperatures, and wear. They also do not easily release metal ions, making them suitable for high-cleanliness dispensing requirements.
This makes the Microplate Dispenser useful for applications where material compatibility, hygiene, and long-term stability all matter.
Main Types of XUEFILL Microplate Dispenser
XUEFILL Microplate Dispenser solutions can be divided mainly by pump type. The common options include a valveless ceramic pump, a rotary valve ceramic pump, and peristaltic pump.
Each pump type has its own advantages. The best choice depends on your liquid viscosity, particle content, cleaning needs, required accuracy, and production capacity.

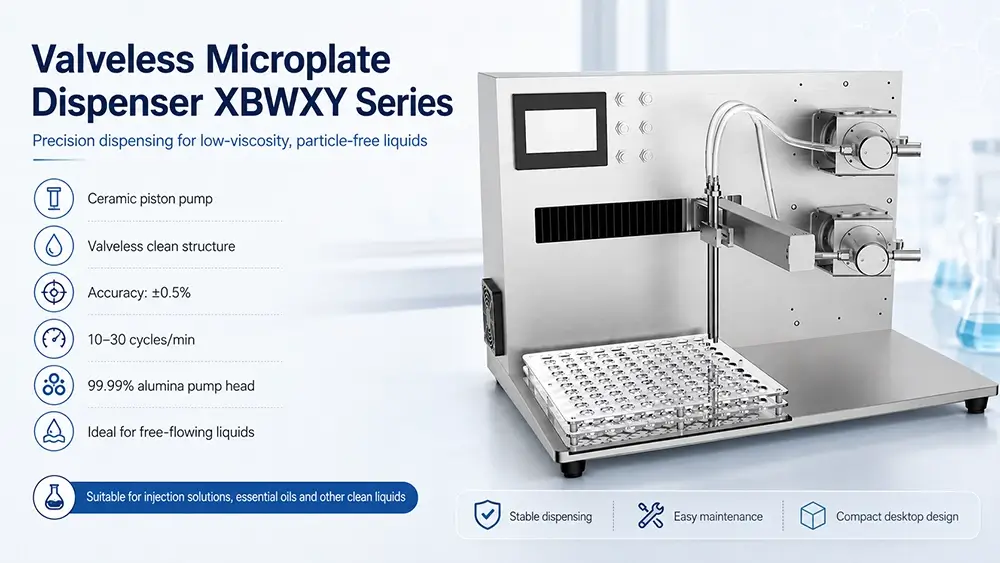

Valveless Microplate Dispenser XBWXY Series
إن Valveless Microplate Dispenser XBWXY Series uses a ceramic piston pump as the filling metering system. It relies on the precise fit between the piston and pump body, without valve switching during operation.
This structure is simple, clean, and suitable for low-viscosity liquids with good flowability. It is a good choice for products such as injection solutions, essential oils, and other clean liquids without particles.
You can insert the product image here when publishing the article.
| Item | المواصفات |
|---|---|
| Machine Model | سلسلة XBWXY |
| Filling Metering Pump | Ceramic piston pump |
| مادة رأس المضخة | Plunger and pump chamber sleeve: 99.99% alumina |
| دقة التعبئة | ±≤0.5% |
| Driving Method | Electric |
| Capacity | 10–30 cycles/min |
| مزود الطاقة | تيار متردد 220 فولت 50/60 هرتز 300 وات |
| Machine Size | 640 × 485 × 455mm |
The XBWXY Series is suitable when users need a clean structure, stable dispensing, and easier maintenance for flowing liquids.

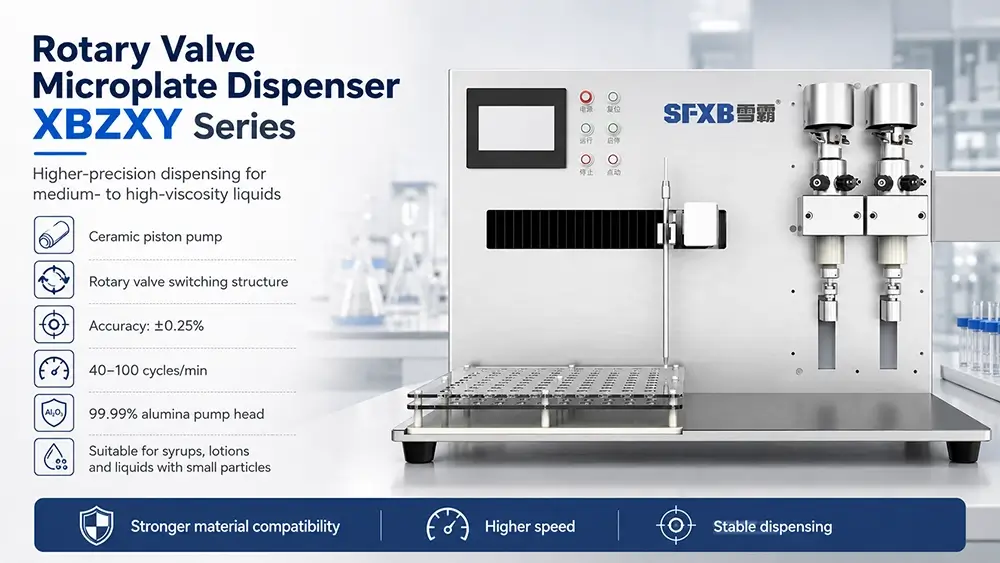

Rotary Valve Microplate Dispenser XBZXY Series
إن Rotary Valve Microplate Dispenser XBZXY Series also uses a ceramic piston pump, but it includes a rotary valve system to switch between liquid intake and liquid discharge.
This design gives it stronger compatibility with more types of materials. It can handle medium to high viscosity liquids or liquids with small particles, such as paste-like materials, syrups, lotions, and similar products.
You can insert the product image here when publishing the article.
| Item | المواصفات |
|---|---|
| Machine Model | سلسلة XBZZXY |
| Filling Metering Pump | Ceramic piston pump |
| مادة رأس المضخة | Plunger and pump chamber sleeve: 99.99% alumina |
| دقة التعبئة | ±≤0.25% |
| Driving Method | Electric |
| Capacity | 40–100 cycles/min |
| مزود الطاقة | تيار متردد220 فولت 50/60 هرتز 380 واط |
| Machine Size | 640 × 485 × 455mm |
| الوزن | حوالي 49 كجم |
The XBZXY Series is suitable when users need higher speed, stronger material compatibility, and better accuracy performance.

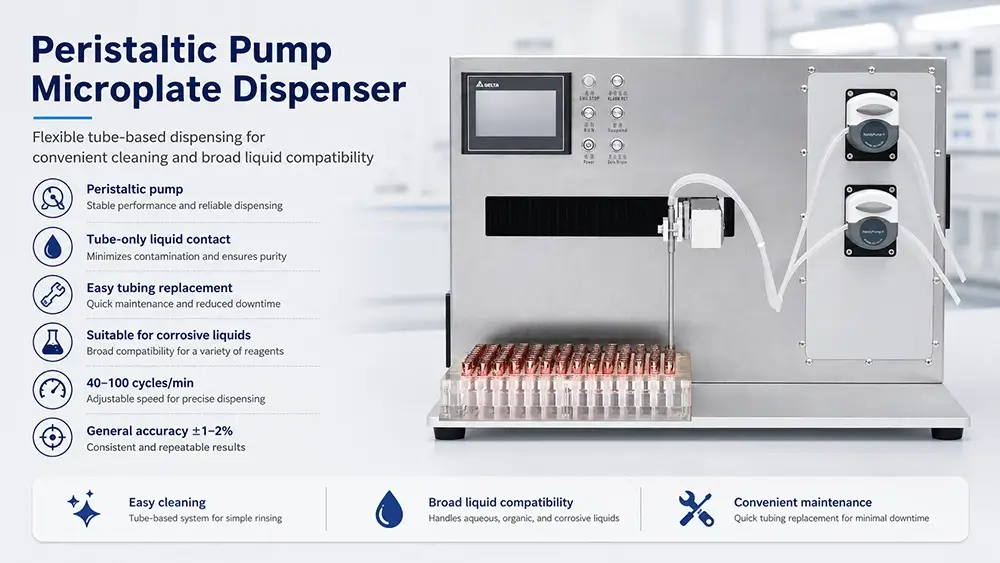

Peristaltic Pump Microplate Dispenser
The Peristaltic Pump Microplate Dispenser uses rollers to repeatedly squeeze flexible tubing, pushing the liquid forward through the tube. The liquid only contacts the tubing, which makes cleaning and replacement more convenient.
This type is suitable for various liquids, including some corrosive liquids or large-flow applications. However, its accuracy is usually lower than ceramic pump systems, and the dispensing result can be affected by tube aging.
You can insert the product image here when publishing the article.
| Item | المواصفات |
|---|---|
| Machine Model | المضخة التمعجية |
| Filling Metering Pump | مضخة تمعجية |
| نطاق التعبئة | Based on pump head range |
| دقة التعبئة | ≤±1–2% |
| Driving Method | Electric |
| Capacity | 40–100 cycles/min |
| مزود الطاقة | تيار متردد 220 فولت 50/60 هرتز 300 وات |
| Machine Size | 640 × 485 × 455mm |
| الوزن | About 38kg |
The peristaltic pump version is more suitable for laboratories, food and beverage applications, chemical dispensing, or scenes where cleaning convenience is more important than ultra-high accuracy.
Differences Between XUEFILL Microplate Dispenser Pump Heads
Different pump heads can create very different dispensing results. Before choosing a Microplate Dispenser, users should first confirm the liquid type, required accuracy, cleaning method, and long-term operating cost.
The table below gives a practical comparison.
| Comparison Item | Valveless Microplate Dispenser XBWXY Series | Rotary Valve Microplate Dispenser XBZXY Series | Peristaltic Pump Microplate Dispenser |
|---|---|---|---|
| مبدأ العمل | Uses the precise fit between piston and pump body, without valve switching | Uses ceramic rotary valve switching for intake and discharge | Rollers squeeze tubing repeatedly to push liquid forward |
| Suitable Materials | Low-viscosity, particle-free, free-flowing liquids such as injection solutions and essential oils | Medium to high viscosity liquids or liquids with small particles, such as paste, syrup, and lotion | Various liquids, including corrosive liquids, particle-containing liquids, and larger-flow materials |
| Accuracy Performance | ≤0.5% | ≤0.25% | General accuracy, about ±1–2%; flow may be affected by tube aging |
| التنظيف والصيانة | Simple structure, easy cleaning, low maintenance cost | More complex structure, regular maintenance needed, cleaning is slightly more involved | Easiest cleaning by replacing tubing, but tube consumable cost is higher |
| Application Range | Better for clean and free-flowing liquids with high cleanliness requirements | Stronger compatibility and wider application range | Suitable for labs, food and beverage, chemical large-flow dispensing, and lower-accuracy applications |
In short, the valveless ceramic pump is simple and clean, the rotary valve ceramic pump offers stronger compatibility and higher accuracy, while the peristaltic pump is easier to clean and more flexible for some laboratory or chemical applications.
Suitable Plates and Containers for XUEFILL Microplate Dispenser
The XUEFILL Microplate Dispenser is designed for high-precision liquid and reagent dispensing into different multi-well laboratory plates and small-container formats.
It can be used for 96-well deep-well plates, 96-well microplates, 384-well microplates, PCR plates, assay plates, and other multi-well laboratory plates. These formats are widely used in pharmaceutical, IVD, biological research, and laboratory applications.
The machine can also support precision dispensing into small containers, depending on fixture design and filling requirements. For customers with special plate sizes or container layouts, XUEFILL can evaluate the sample and recommend a suitable configuration.
When choosing the machine, it is important to confirm the plate layout, filling volume, liquid properties, and expected output. These details directly affect the best pump type and dispensing head arrangement.
XUEFILL Microplate Dispenser Advantages
XUEFILL Company Advantages
زويفيل is located in Guangzhou, China. Since its establishment in 2000, the company has focused on the research, development, and design of automated filling equipment and complete filling production lines.
- Over the years, XUEFILL has developed strong experience in non-standard automated filling systems. The company has obtained more than 100 certifications and patents, including invention patents, utility model patents, appearance patents, and software copyrights.
- XUEFILL is a National High-Tech Enterprise and a Guangdong Province Specialized, Refined, Unique and New Enterprise. The company has also participated in the drafting of national standards for packaging machinery safety requirements and was officially listed on the Guangzhou Equity Exchange in 2016.
- The company has ISO, CE, CQM, and other international certification support. Its ceramic metering pump is independently developed and offers high cleanliness, corrosion resistance, acid and alkali resistance, high-temperature resistance, wear resistance, and high accuracy.
- With a production and R&D base of more than 4,000 square meters and an engineering team with deep industry experience, XUEFILL serves customers in research, pharmaceuticals, cosmetics, personal care, food, chemical, and daily chemical industries.
- Its product range includes filling machines, ماكينات التغطية, induction ماكينات الختم الحثي, ماكينات وضع العلامات, ceramic metering pumps, و customized automatic filling production lines.
XUEFILL Product Advantages
- The XUEFILL Microplate Dispenser is independently developed and designed, with support from multiple patents and software copyrights.
- It can use XUEFILL’s self-developed valveless ceramic pump and rotary valve ceramic pump technologies. These pump systems offer high precision, high cleanliness, high hardness, corrosion resistance, acid and alkali resistance, high-temperature resistance, and wear resistance.
- Depending on the pump configuration and product condition, dispensing accuracy can reach approximately ±0.2–0.5%. This makes the machine suitable for precision dispensing needs in laboratories, pharmaceutical companies, IVD enterprises, cosmetic factories, and research institutions.
- The machine uses an advanced human-machine interface with touchscreen operation. Operating data can be adjusted and stored, making it easier for users to switch between different products or dispensing programs.
- The 304 stainless steel appearance is durable, stable, and suitable for clean working environments. The desktop design saves space and is especially useful for laboratories, universities, R&D rooms, IVD companies, and small-batch precision filling applications.
Looking Forward to Cooperation
Every customer’s dispensing requirement is different. Plate format, filling volume, liquid viscosity, particle content, corrosion level, accuracy requirement, and production capacity can all affect the final configuration.
You can share your product details directly with XUEFILL. Based on your sample, application, and production needs, we can recommend a suitable Microplate Dispenser configuration or provide a more suitable liquid filling solution.
You are also welcome to contact us through our website and visit our factory for further discussion:
https://xuefill.com/contact-xuefill/
الأفكار النهائية
Choosing the right Microplate Dispenser is not only about buying a dispensing machine. It is about matching the pump type, plate format, liquid properties, accuracy requirement, and production workflow.
- For clean, low-viscosity liquids, a valveless ceramic pump can be a simple and stable choice.
- For medium to high viscosity materials or liquids with small particles, a rotary valve ceramic pump may offer better compatibility and higher accuracy.
- For applications that value tube-only contact and easy cleaning, a peristaltic pump may be more practical.
The XUEFILL Microplate Dispenser series is designed to support precise liquid and reagent dispensing for pharmaceutical, IVD, laboratory, cosmetic, food, beverage, and chemical applications. If you are looking for a Microplate Dispenser for 96-well plates, deep well plates, PCR plates, assay plates, or other multi-well formats, XUEFILL can help review your samples and recommend a suitable configuration.
أسئلة وأجوبة حول Microplate Dispenser
Quick answers before choosing your dispensing solution
A Microplate Dispenser is a precision machine used to dispense liquids into microplates, deep well plates, PCR plates, assay plates, or other multi-well containers. It usually works through an X-Y movement system and one or more dispensing heads. Its main purpose is to improve dispensing efficiency, accuracy, and repeatability.
A Microplate Dispenser moves the dispensing head or plate according to a programmed X-Y path. The pump draws liquid from the source and dispenses a fixed volume into each well or position. Depending on the pump type, the machine may use a valveless ceramic pump, rotary valve ceramic pump, or peristaltic pump.
The main advantages are higher efficiency, better repeatability, precise dispensing, cleaner operation, and reduced manual workload. It is especially useful for small-volume liquids, reagents, pharmaceutical liquids, IVD samples, and laboratory applications. Choosing the right pump type can also improve compatibility with different liquids.
A Microplate Dispenser is used for dispensing liquids into 96-well deep well plates, 96-well microplates, 384-well microplates, PCR plates, assay plates, reagent tubes, vials, and other small containers. It is widely used in pharmaceutical, IVD, laboratory, cosmetic, food, beverage, chemical, and research applications.
