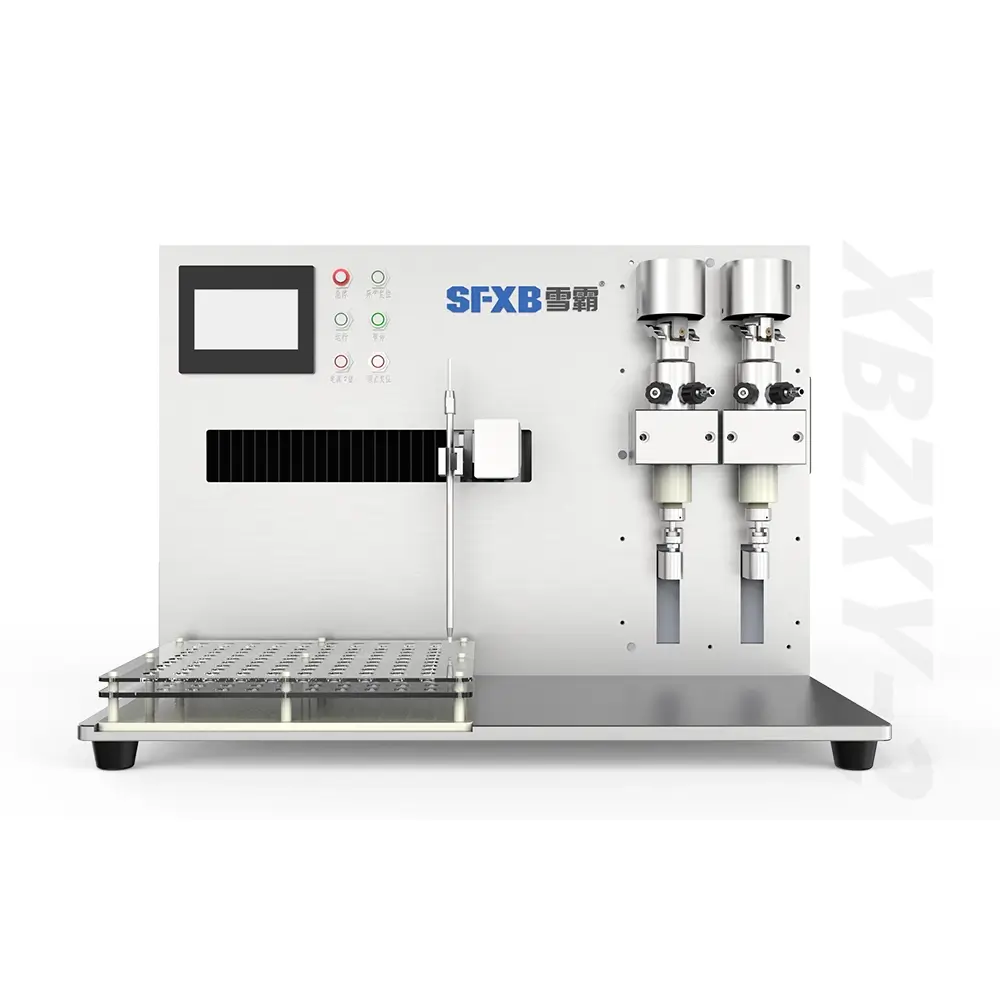

Rotary Valve Microplate Dispenser XBZXY Series
The XUEFILL Rotary Valve Microplate Dispenser XBZXY Series features a servo-driven rotary-valve ceramic pump with ±0.25% precision. Designed with an X–Y motion filling system and a 304 stainless steel frame, it’s ideal for laboratory, cosmetic, and pharmaceutical applications requiring small-volume precision liquid filling.
Response within 24 hours. Your information will remain confidential.
VIDEO
DESCRIPTION
- Advanced Touchscreen Control Interface Equipped with an intuitive HMI system that allows easy adjustment, storage, and recall of parameters. Operators can fine-tune filling volume and speed for multiple product types with ease.
- Servo-Driven Rotary Valve Ceramic Pump Powered by XUEFILL’s high-purity ceramic pump (99.99% alumina), it provides exceptional corrosion resistance and achieves ±0.25% precision — perfect for high-viscosity or reactive liquids.
- Compact X–Y Motion Benchtop Design Space-efficient rectangular structure with precise X–Y axis filling movement. Supports multi-well plate filling and laboratory workflows requiring accurate positioning.
- Hygienic Stainless Steel Construction All contact parts are made from 316L stainless steel and ceramic, ensuring full compliance with pharmaceutical and cosmetic hygiene standards.
- Versatile Application Range Ideal for pharmaceutical factories, IVD companies, cosmetic labs, and R&D institutes. Perfect for precise quantitative filling of blood, reagents, oral solutions, perfume, essential oils, and chemical liquids.
SPECIFICATION
ITEM | PARAMETER | |||
Brand | XUEFILL (OEM Support) | |||
Model No. | XBZXY-2 | |||
Model Name | Matrix Type High Precision Rotary Valve Plunger Ceramic Pump Filling Machine | |||
Pump Head Type | Rotary Valve Plunger Ceramic Pump(Optional) | |||
Pump Head Material | Plunger, pump chamber sleeve (99.99% alumina) | |||
Filling Speed | 40-100 times/min | |||
Rotary Valve Ceramic Pump Models | XBS-02 | XBS-05 | XBS-10 | XBS-20 |
Filling Range | 0.5~2ml/time | 1~5ml/time | 2~10ml/time | 5~20ml/time |
Filling Accuracy | ≤±0.25% (Using water as the standard, an accuracy of over 30% of the maximum filling value can be achieved) | |||
Power Supply | AC220V 50/60Hz 380W | |||

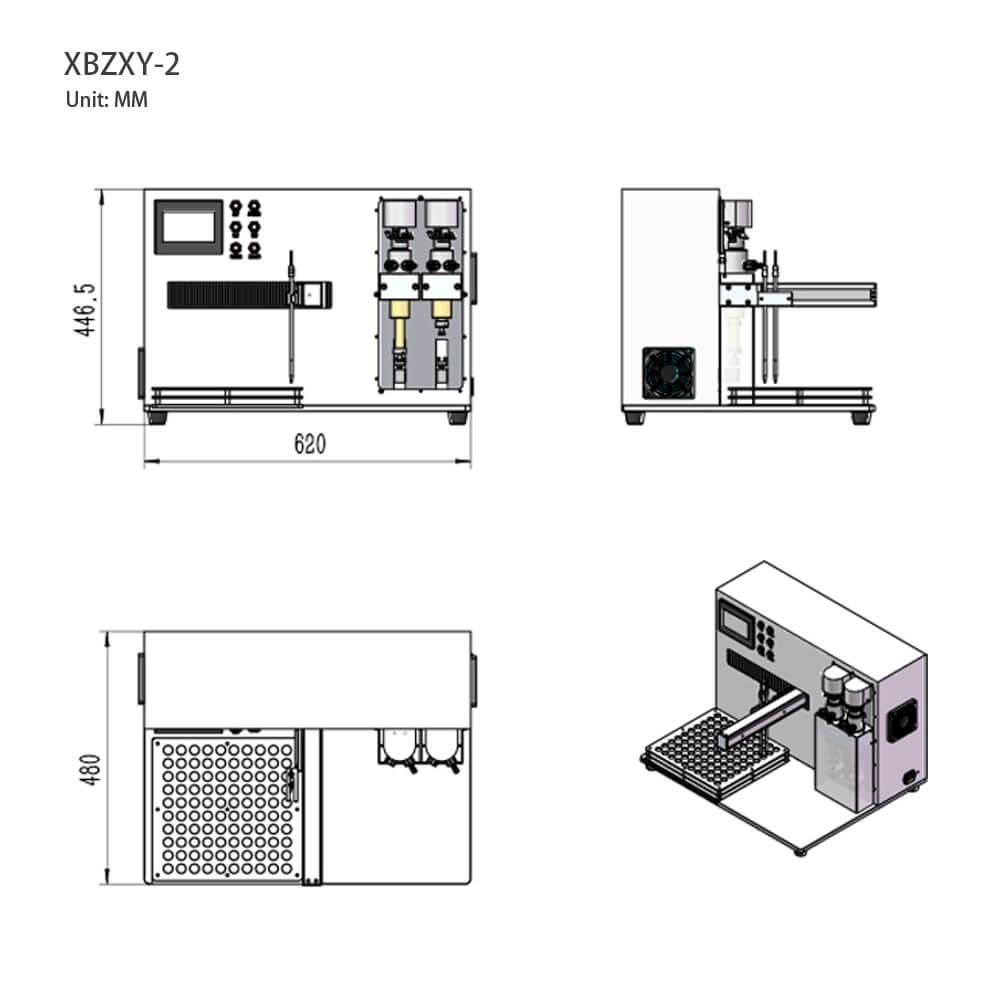

Machine Dimensions | 620 X 480 X 447 mm | |||
Weight | About 49kg | |||
Container Type | Suitable for 96-well deep-well plates and other multi-well plate formats | |||
Container Materials | PP, PS, PC | |||
Automation Level | Automatic | |||
After-sales Support | Manual,Video technical support,online support | |||
Factory Video Inspection | Available | |||
Country of Origin | Guangzhou, China | |||
APPLICATION
Suitable for precise small-dose liquid filling across various industries, including food, pharmaceuticals, cosmetics, chemicals, healthcare, and environmental applications.
Factory Direct
XUEFILL is a manufacturer of high-precision filling machines, operating a modern 4000㎡ production base. With complete in-house design, engineering, and manufacturing, we ensure strict quality control and faster delivery. We warmly welcome global clients to visit our factory, explore our equipment.
Patented Technology

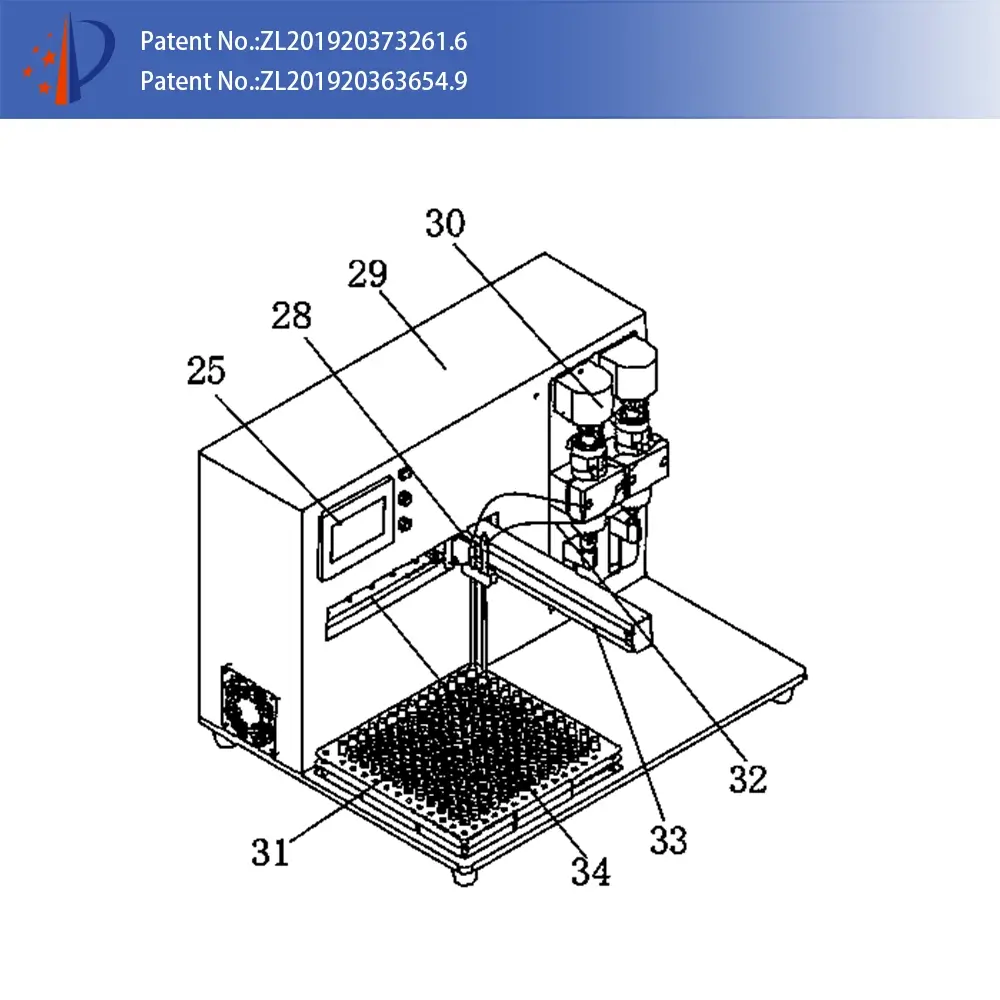

We are driven by continuous innovation and excellence. With over 100+ utility model patents, 18 invention patents, 13 design patents, and 18 software copyrights, our patented technology ensures every filling machine delivers precision, performance, and reliability you can trust.
