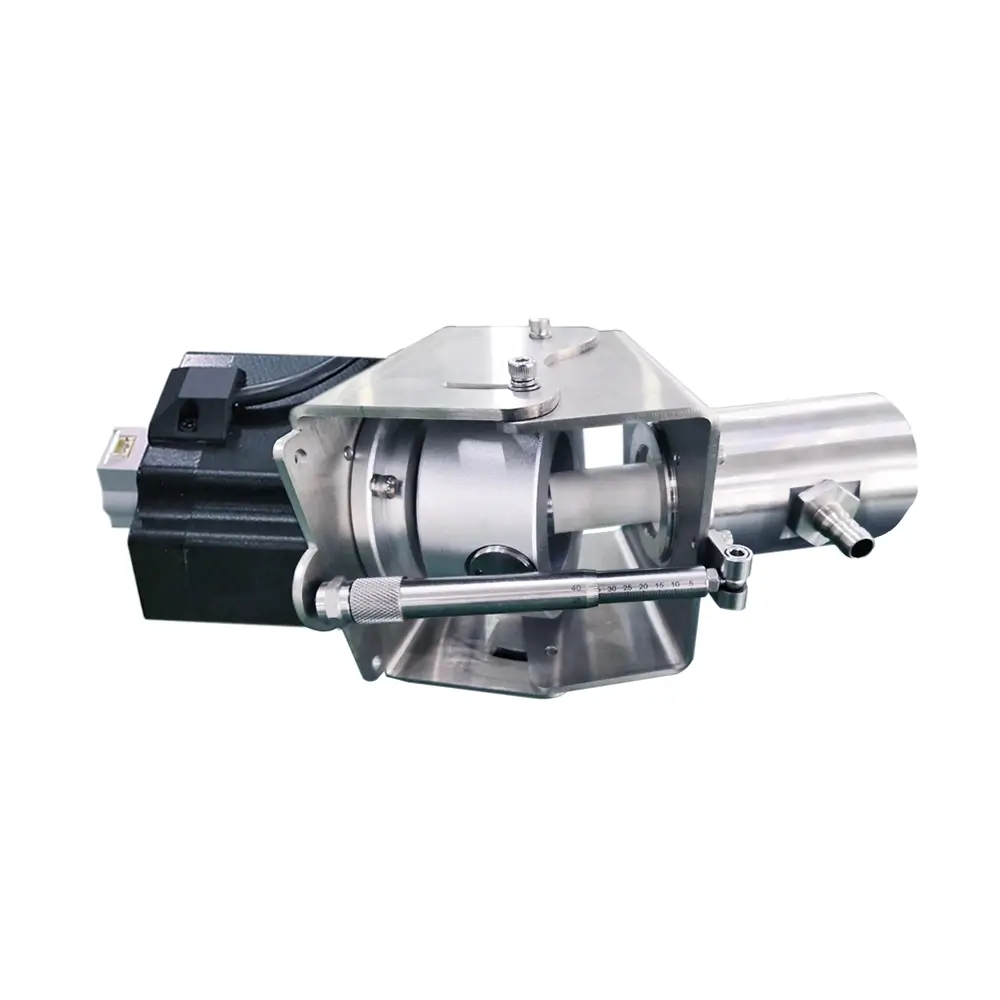

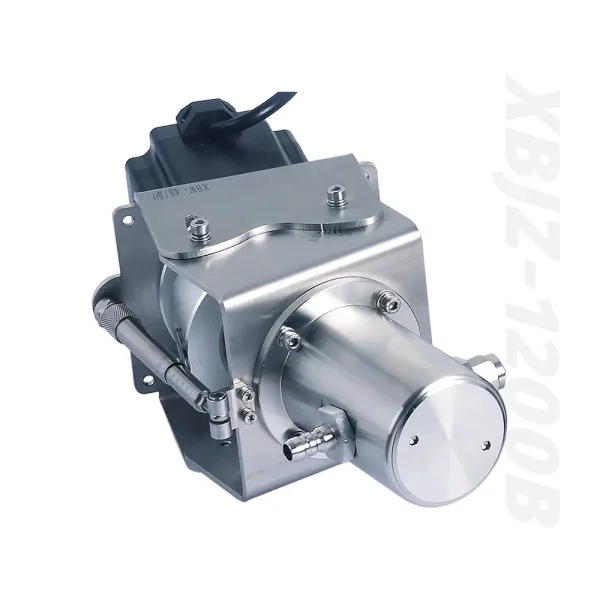

Ceramic Plunger Pump XBW Series
XUEFILL’s Ceramic Plunger Pump XBW Series offers unmatched precision, corrosion resistance, and stability. Designed for pharmaceutical, cosmetic, and food industries, it ensures accurate dosing, long service life, and minimal residue — the ultimate reliable high precision pump for sterile applications.
Response within 24 hours. Your information will remain confidential.
DESCRIPTION
- Exceptional Material Quality – Constructed with a plunger and pump chamber sleeve made of 99.99% alumina or zirconia ceramic, providing excellent resistance to acids, alkalis, corrosion, and high temperatures.
- Superior Precision & Stability – With an extremely low thermal expansion coefficient, the piston gap remains stable, ensuring consistent dosing accuracy within ±0.25% to ±0.5%.
- Ultra-Smooth Surface Finish – Minimal friction and nearly zero material residue, making it ideal for aseptic environments requiring high cleanliness.
- Long Service Life & Reliability – The ceramic structure offers outstanding hardness, wear resistance, and minimal particle release, ensuring years of reliable performance.
- Versatile Industrial Applications – Perfect for laboratory, pharmaceutical, analytical, and cosmetic production equipment. Suitable for precise quantitative filling of blood, biological reagents, oral liquids, serums, and various corrosive solutions.
SPECIFICATION
ITEM | PARAMETER | ||||||||
Brand | XUEFILL (OEM Support) | ||||||||
Model Name | Valveless Ceramic Plunger Pump Assembly | ||||||||
Model No. | XBW-05 | XBW-07 | XBW-10 | XBW-13 | XBW-15 | XBW-22 | XBW-25 | XBW-36 | XBW-48 |
Plunger Diameter | 5mm | 7mm | 10mm | 13mm | 15mm | 22mm | 25mm | 36mm | 48mm |
Pump Head Material | Plunger and Pump Chamber Sleeve (99.99% Alumina, Zirconia) | ||||||||
Maximum Suction Height | 4 m (Data measured with water as the medium) | ||||||||
Maximum Throughput / Rev | 130μl/rev | 0.25ml/rev | 0.95ml/rev | 1.6ml/rev | 2.9ml/rev | 6ml/rev | 12ml/rev | 25ml/rev | 50ml/rev |
Filling Accuracy / Spinning Speed | ≤ ±0.5% / 0-300RPM | ≤ ±0.25% / 0-300RPM | ≤ ±0.25% / 0-150RPM | ≤ ±0.25% / 0-20RPM | |||||
Accuracy Standard | With water as the reference medium, filling accuracy is ensured for values above 30% of the maximum filling volume. | ||||||||
Placement Angle / Throughput Pressure | 15° / 0.6MPa | 20° / 0.6MPa | 20° / 0.5MPa | 20° / 0.4MPa | |||||
Weight | 1kg | 2kg | 3.5kg | 7kg | 16kg | ||||
Country of Origin | Guangzhou, China | ||||||||
APPLICATION
The Ceramic Plunger Pump XBW Series is a key component for precise material dosing or continuous delivery in laboratory, analytical, and pharmaceutical equipment.
It is widely applied in the pharmaceutical, food, chemical, and cosmetic industries for high-precision quantitative filling.
This pump is ideal for dispensing biological reagents, oral liquids, injections, serums, high-end cosmetics, fragrances, e-liquids, and disinfectants, as well as for handling various acidic and alkaline corrosive liquids with excellent stability and accuracy.
