Automatic 12 Heads Gravity Filling Machine XBZLS-12
The XUEFILL 12-Head Gravity Filling Machine is designed for efficient, high-precision filling of juices, edible oils, and other free-flowing liquids. Equipped with a pressure-regulated storage tank, it ensures ±1.5% accuracy. Controlled by a PLC touchscreen, it’s ideal for food, cosmetic, and pharmaceutical industries.
Response within 24 hours. Your information will remain confidential.
DESCRIPTION
- Advanced HMI Control System User-friendly PLC touchscreen interface allows operators to easily adjust flow rate and filling volume with real-time monitoring.
- Precision Gravity Filling Equipped with a constant-pressure tank, it guarantees stable flow and ±1.5% filling accuracy.
- High Hygiene Standards All contact parts are made of 316L stainless steel, with a 304 stainless exterior that fully complies with food safety standards.
- Durable & Low-Maintenance Designed for long-term operation with minimal maintenance, ensuring reliable and efficient production.
- Versatile Applications Suitable for filling water, juices, edible oils, and other non-viscous liquids across food, cosmetics, and pharmaceutical industries.
SPECIFICATION
ITEM | PARAMETER | |
Brand | XUEFILL (OEM Support) | |
Model | XBZLS-8 | XBZLS-12 |
Number of Pump Heads | 8 Heads | 12 Heads |
Filling Volume Range | 50-2000ml | |
Filling Speed | 20-70 Bottles/Min | 30-100 Bottles/Min |
Filling Precision | ±1.5% | |
Pressure Range | 0.4-0.6 Mpa | |
Power | AC380V / 50/60Hz / 500W | |

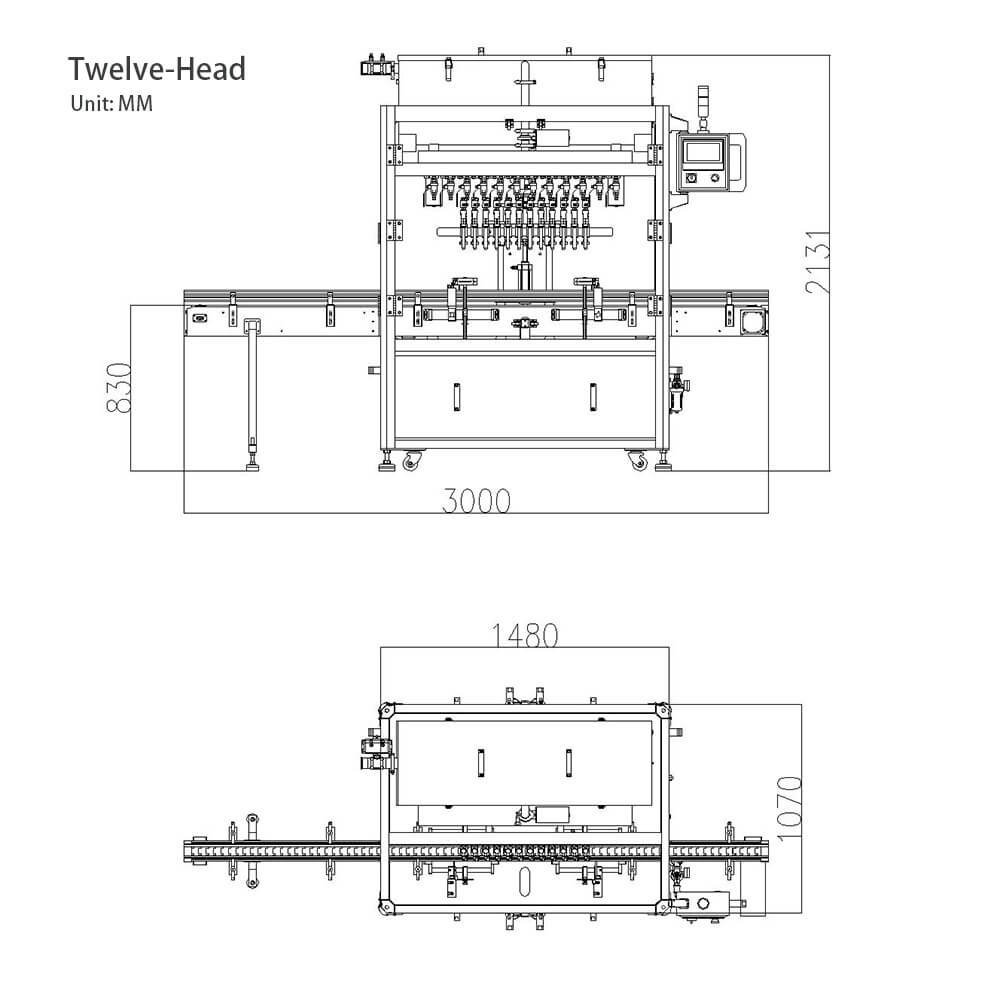

Machine Dimension | 3000 X 1080 X 2451 mm | 3000 X 1070 X 2131 mm |
Packaging Type | Bottle | |
Packaging Material | Plastic, Metal, Glass | |
Automation Level | Automatic | |
After-sales Support | Manual,Video technical support,online support | |
Factory Video Inspection | Available | |
Country of Origin | Guangzhou, China | |
Kindly Note | Pump Heads Optional: 8/12 Heads | |
APPLICATION
INDUSTRIES | MATERIALS |
Food and Beverage | Fruit juice, alcoholic beverages, and cooking oil, etc. |
Daily Chemical and Cosmetics | Liquid hand wash, makeup remover, skin lotion, disinfectant liquid, etc. |
Pharmaceutical and Laboratory | Medical alcohol, saline solution, water for Injection, etc. |
Chemical Industry | Antifreeze, cleaning agent, ethanol, etc. |
